Deploying Your First Agno Agent on TrueFoundry

Truefoundry

27 Mar 2025 • 5 min read

In this guide, we’ll show you how to deploy a agno agent on TrueFoundry, a platform designed to simplify AI deployment with minimal DevOps or MLOps expertise. TrueFoundry automates infrastructure management, scaling, and monitoring, allowing you to focus on deriving insights rather than handling deployment complexities. With just a few clicks, you can transform natural language requests into SQL queries and dynamic charts, making data exploration seamless and intelligent—no manual querying required!

If you would like to try this out directly, please visit the TrueFoundry platform and navigate to Live Demos and agno-Streamlit: Live demo of our agent workflow

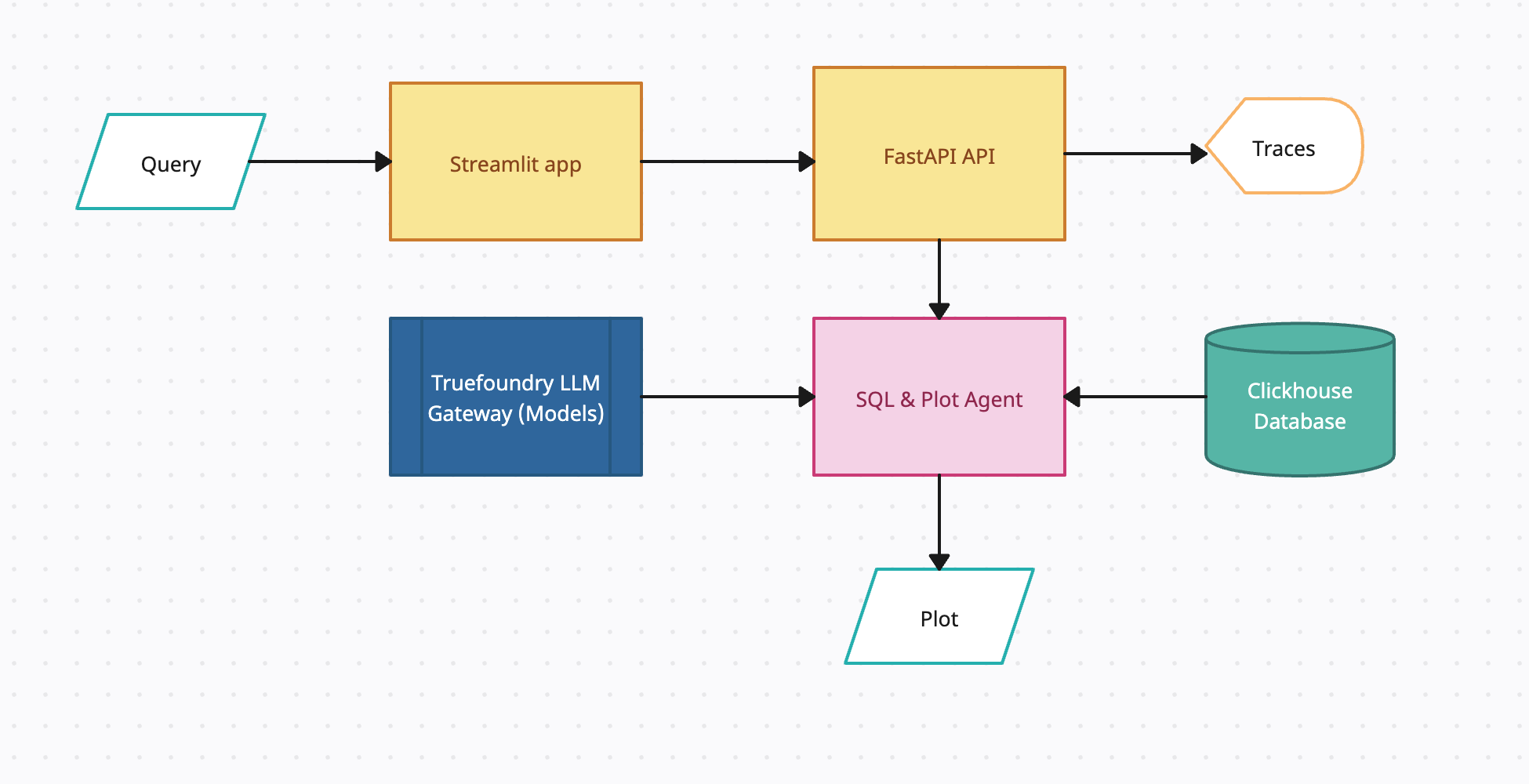

Architecture Overview

This project consists of several key components working together:

Query Agent: An AI agent powered by agno that:

Uses GPT-4o for natural language understanding
Generates appropriate SQL queries for ClickHouse
Executes the SQL query against a pre-configured database
Returns the data in tabular format as input for the visualization agent

Visualization Agent: A second AI agent that:

Determines the most appropriate visualization type given the data
Generates plots using matplotlib/seaborn
Handles formatting and styling of visualizations

FastAPI Backend: RESTful API that:

Coordinates between agents using agno
Manages asynchronous job processing
Serves plot images and results

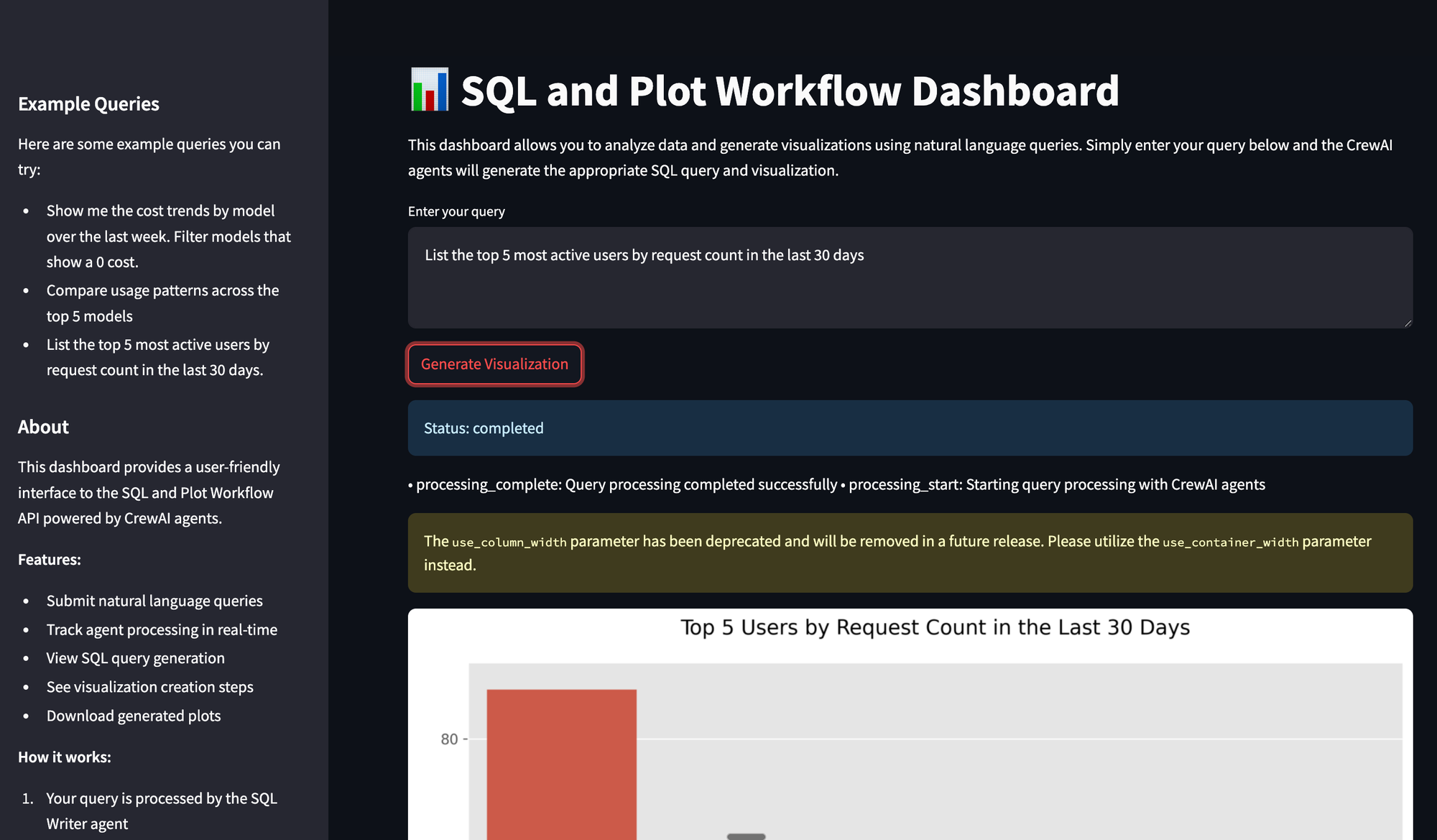

Streamlit Frontend: User interface that:

Provides an intuitive query interface
Displays real-time processing status
Shows interactive visualizations

Data Flow

User submits a natural language query through Streamlit.

Query Agent uses agno with GPT-4o to generate SQL queries for ClickHouse
Executes the SQL query against ClickHouse database
Results are returned in tabular format as input for the Visualization Agent
Visualization Agent generates visualizations and returns images for display

Getting Started

Clone the Repository

First, navigate to the TrueFoundry Getting Started Examples repository and clone it:

git clone <https://github.com/truefoundry/getting-started-examples.git>

Navigate to the agno Plot Agent Directory:

cd getting-started-examples/plot_agent/agno_plot_agent

Environment Setup

Create and activate a virtual environment:

python -m venv venv
source venv/bin/activate  # On Windows: venv\Scripts\activate

Install dependencies:

pip install uv
uv install

Configure Environment Variables

Create a .env file:

# Truefoundry LLMGateway Configuration if using Truefoundry LLM Gateway for calling models
LLM_GATEWAY_BASE_URL=your_llm_gateway_base_url_here
LLM_GATEWAY_API_KEY=your_llm_gateway_api_key_here

# OPENAI API Configuration if not using Truefoundry LLM Gateway
OPENAI_API_KEY=<your_openai_api_key_here>

CLICKHOUSE_HOST=your_clickhouse_host
CLICKHOUSE_PORT=443
CLICKHOUSE_USER=your_user
CLICKHOUSE_PASSWORD=your_password
CLICKHOUSE_DATABASE=default
agno_VERBOSE=true

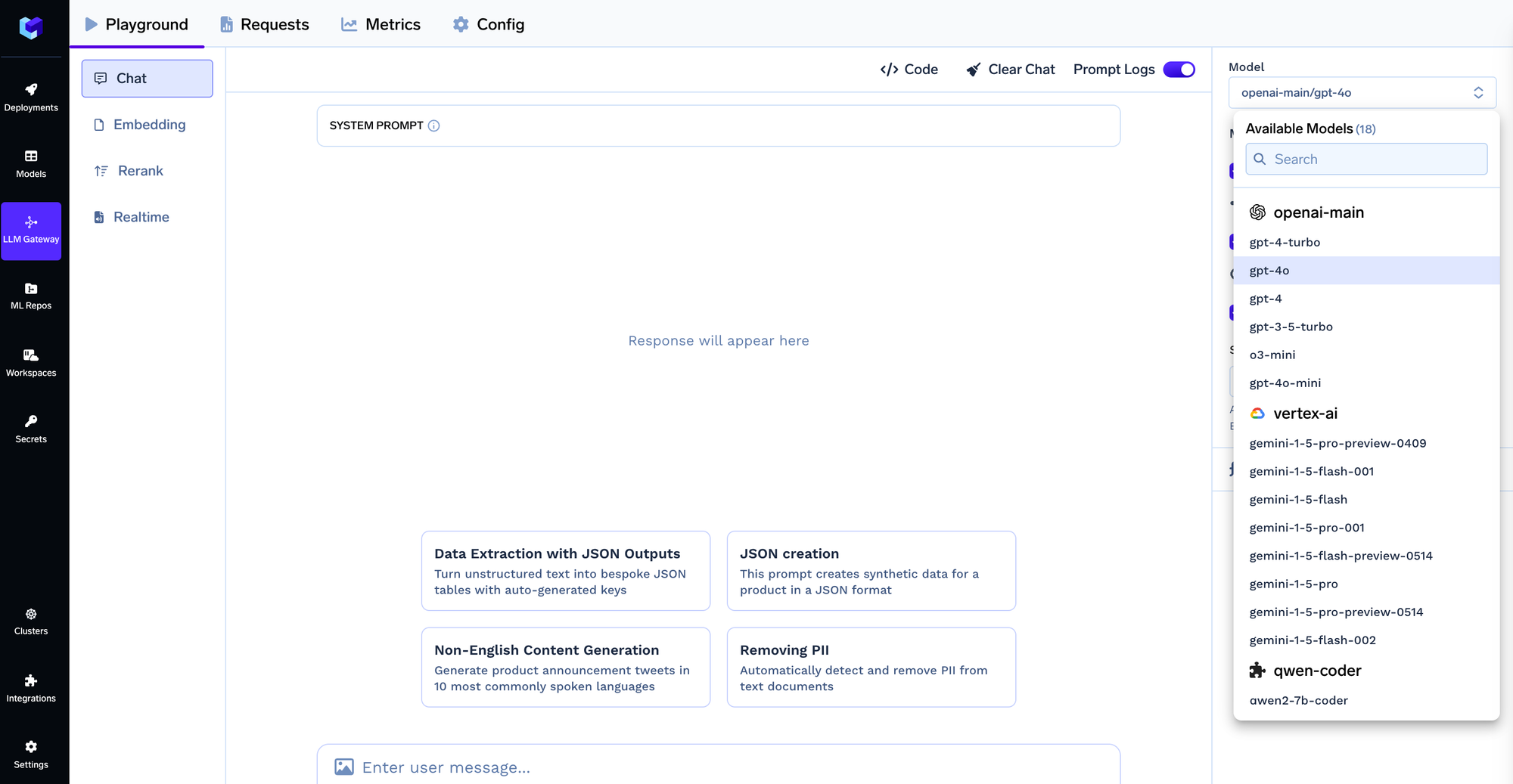

Note: When using the TrueFoundry LLM Gateway, the model ID format should be provider-name/model-name (e.g., openai-main/gpt-4o). Make sure your .env file contains the correct LLM Gateway credentials as shown in the Environment Configuration section.

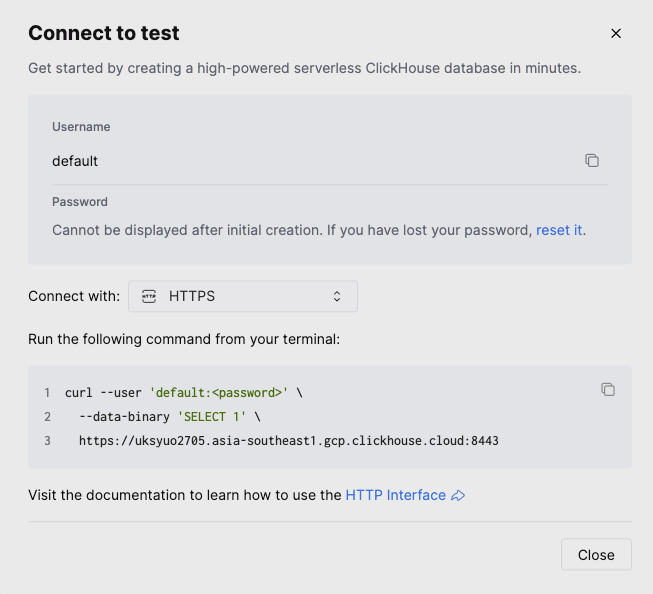

To get clickhouse credentials, create an account on clickhouse, sign in and create a service. After clicking the service you will see a connect button on the middle of left sidebar, which you can click to see the credentials as shown below. You can either create a database by uploading your files or use a predefined one.

Agno Agent implementation

from agno.agent import Agent
from agno.models.openai import OpenAIChat
from plot_tools import PlotTools
from query_tools import QueryTools
import os
# Query Agent for SQL generation - Using TrueFoundry LLM Gateway
sql_agent: Agent = Agent(
    model=OpenAIChat(
        id="openai-main/gpt-4o",  # Format: provider-name/model-name
        api_key=os.getenv("LLM_GATEWAY_API_KEY"),
        base_url=os.getenv("LLM_GATEWAY_BASE_URL")
    ),
    description="",
    instructions=[],
    tools=[ClickHouseTools()],
    show_tool_calls=True,
    markdown=True,
    response_model=SQLQueryResult,
    structured_outputs=True,
)
# Visualization Agent - Using TrueFoundry LLM Gateway
plot_agent: Agent = Agent(
    model=OpenAIChat(
        id="openai-main/gpt-4o",
        api_key=os.getenv("LLM_GATEWAY_API_KEY"),
        base_url=os.getenv("LLM_GATEWAY_BASE_URL")
    ),
    description="",
    instructions=[],
    tools=[PlotTools()],
    markdown=True,
    response_model=VisualizationRequest,
    structured_outputs=True,
)

Running the Services

Start agno Workflow:

agno run

Start FastAPI Backend:

python api.py

Start Streamlit UI (new terminal):

streamlit run app.py

Deployment on TrueFoundry

Prerequisites

Install TrueFoundry CLI:

pip install -U "truefoundry"

tfy login --host "<https://app.truefoundry.com>"

Deployment Steps

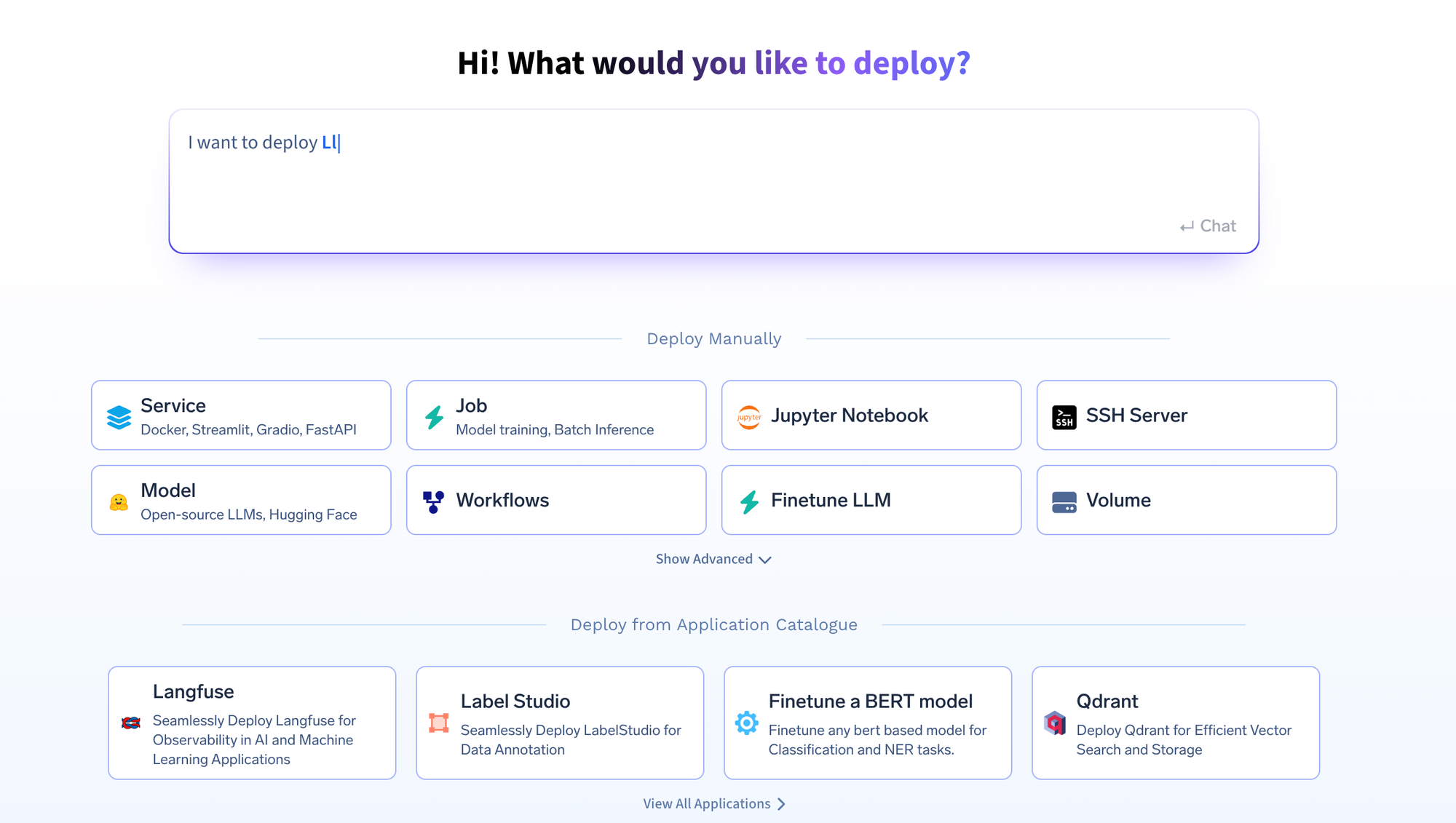

Navigate to Deployments section in TrueFoundry.

Click Service at the bottom.
Select your cluster workspace.
You can deploy from your laptop, GitHub, or Docker. If deploying from your laptop, ensure you have completed the prerequisites above.
The TrueFoundry platform will generate a deploy.py file and add it to your project. You’ll need to edit this file to add your environment variables. Find the env section in the generated file and add your credentials:
Use the generated deploy.py and edit the env section:

env={ "OPENAI_API_KEY": "your_openai_api_key", "CLICKHOUSE_HOST": "your_clickhouse_host", "CLICKHOUSE_PORT": "443", "CLICKHOUSE_USER": "your_user", "CLICKHOUSE_PASSWORD": "your_password", "CLICKHOUSE_DATABASE": "default", "AGNO_VERBOSE": "true" },

Replace placeholders with your credentials and environment configurations.

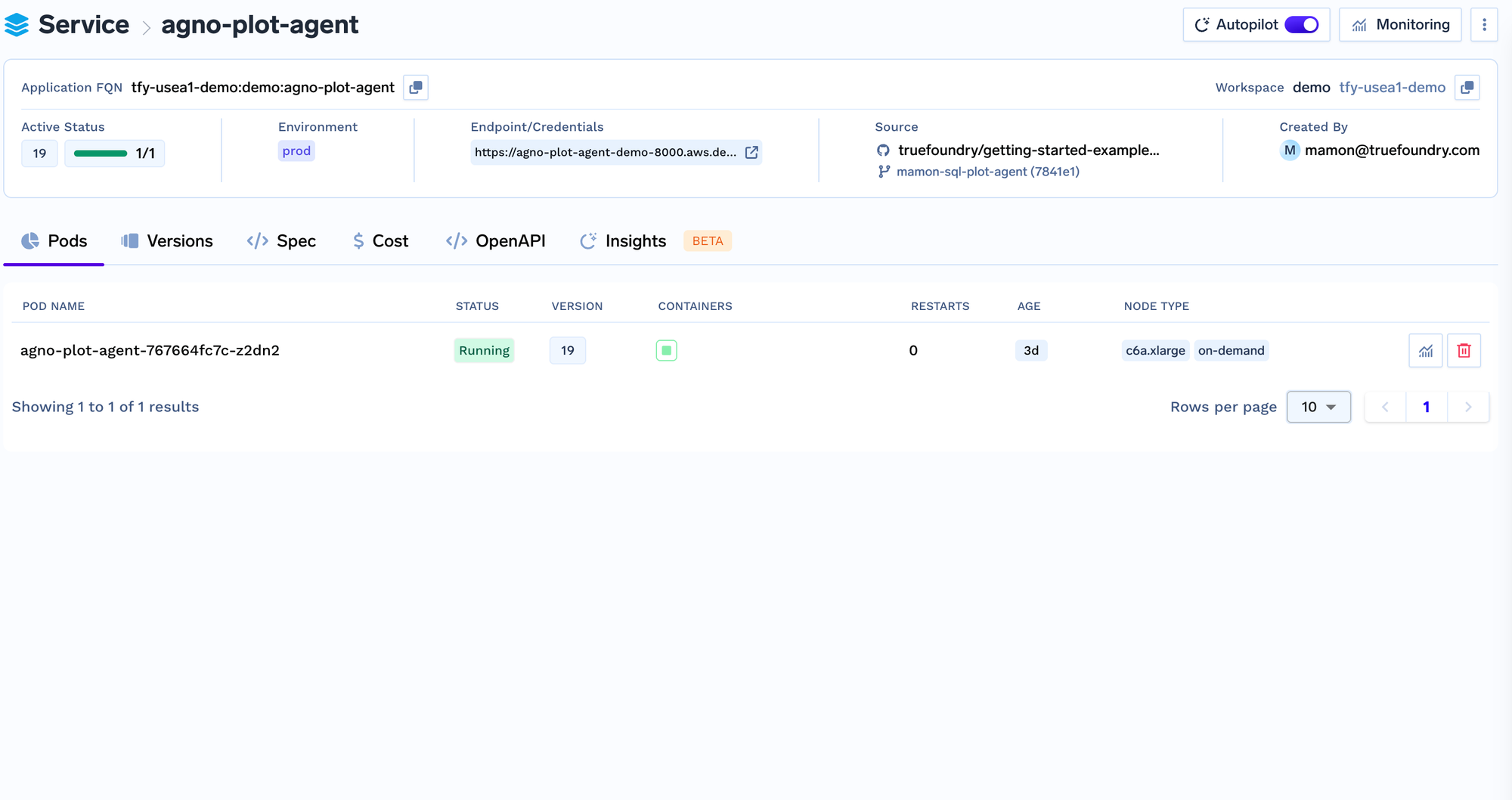

Deploy your First Service

Testing Deployment

Send a test query:

curl -X POST \
  -H "Content-Type: application/json" \
  -d '{"query": "Show me the cost trends by model over the last week"}' \
  <https://agno-plot-agent-demo-8000.aws.demo.truefoundry.cloud/query>

Successful response example:

{
  "job_id": "1234-abcd-5678-efgh"
}

API Endpoints

Submit a Query:

curl -X POST <http://localhost:8000/query> -H "Content-Type: application/json" -d '{"query": "Your query here."}'

Check Query Status:

curl -X GET <http://localhost:8000/status/{job_id}>

Retrieve Plot Image:

curl -X GET <http://localhost:8000/plot/{job_id}> > plot.png

Frontend and CORS

Configure CORS in FastAPI:

from fastapi.middleware.cors import CORSMiddleware
app.add_middleware(
    CORSMiddleware,
    allow_origins=["*"],
    allow_credentials=True,
    allow_methods=["*"],
    allow_headers=["*"],
)

Define Environment Variable in Streamlit:

import os
FASTAPI_ENDPOINT = os.getenv("FASTAPI_ENDPOINT", "<http://localhost:8000>")

Post-deployment Notes

Test API connectivity from Streamlit to FastAPI.
Update Streamlit’s .env file with the FastAPI endpoint.
Confirm CORS settings allow Streamlit requests.

Monitor and manage your deployment through TrueFoundry by:

Viewing logs
Monitoring resource usage
Setting auto-scaling rules
Checking backend health (/health), API documentation (/docs), and metrics at /metrics

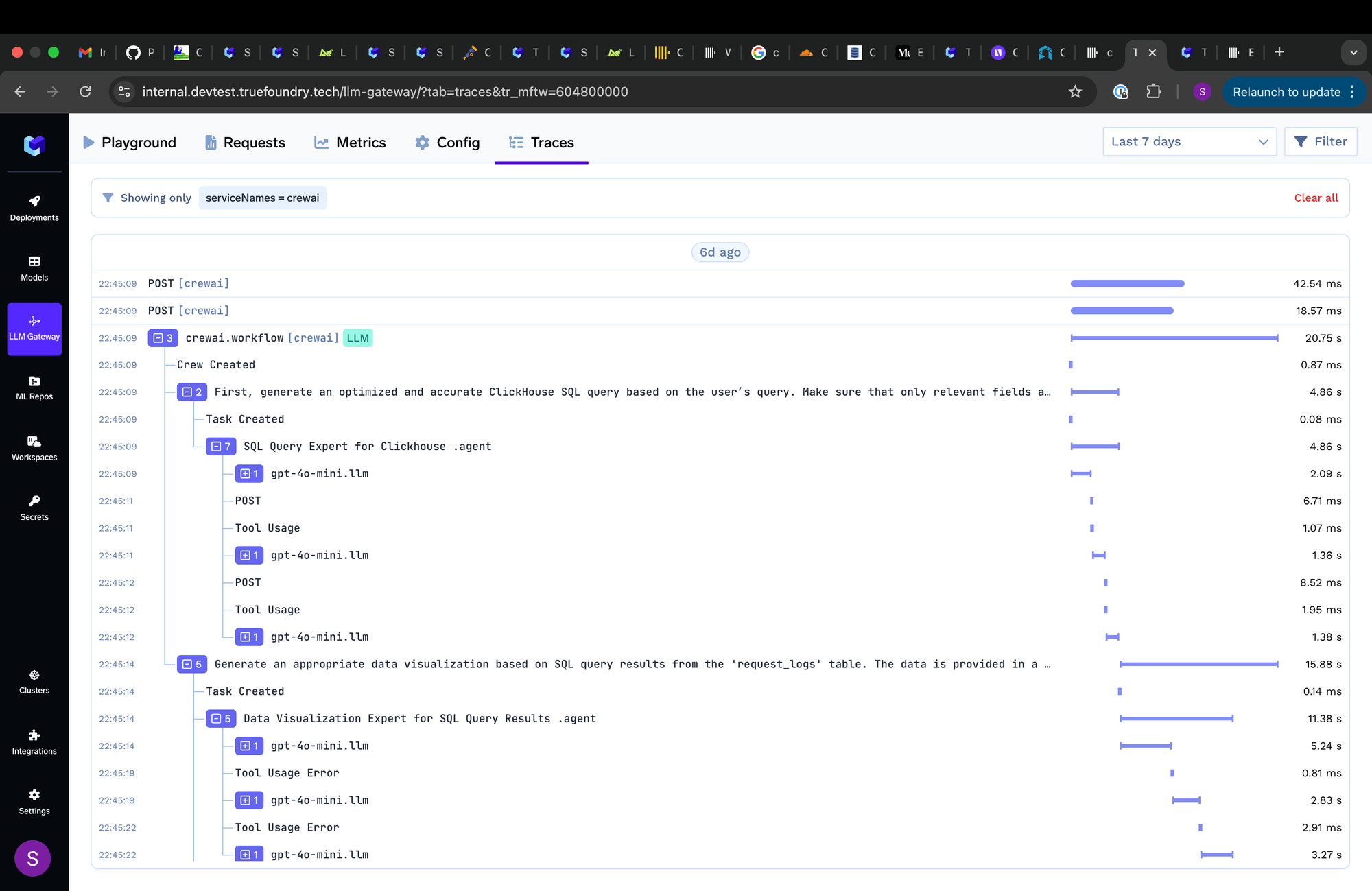

Add traces to your agent

Tracing helps you understand what’s happening under the hood when an agent run is called. You get to understand the path, tools calls made, context used, latency taken when you run your agent using Truefoundry’s tracing functionality by add very few lines of code.

You need to install the following

pip install traceloop-sdk

And then add the necessary environment variables to enable tracing

"AGNO_VERBOSE": "true",  # For detailed agno logs
"TRACELOOP_BASE_URL": "<your_host_name>/api/otel" # "https://internal.devtest.truefoundry.tech/api/otel"
"TRACELOOP_HEADERS"="Authorization=Bearer%20<your_tfy_api_key>"

In your codebase where you define your agent, you just need these lines to enable tracing

from traceloop.sdk import Traceloop
Traceloop.init(app_name="agno")

With these steps, your agno agent workflow is now successfully deployed on TrueFoundry!
