Machine Learning Tool Integrations #2 DVC for your Data Versioning

Data version control (DVC) is a powerful tool for managing and versioning large datasets and models in machine learning projects.

DVC is an open-source tool that works with a wide range of storage options, including local disk, network file systems, Amazon S3, Google Cloud Storage, and many others. DVC can be used in conjunction with popular machine learning frameworks like TensorFlow, PyTorch, and scikit-learn.

In addition to tracking changes to data and models, DVC can also help users manage dependencies between different components of a machine learning project, such as code, data, and models. By keeping track of these dependencies, DVC makes it easier to reproduce machine learning experiments and to share projects with others.

Challenges of Version Control in Machine Learning:

Version control in Machine Learning is a harder task as compared to Software Engineering because of the following reasons:

1. Large and complex datasets: In machine learning, the datasets used for training and testing models can be massive, making it challenging to manage and version them. Additionally, the data can be unstructured, making it difficult to track changes to the data over time.
2. Multiple components: Machine learning projects often involve multiple components, including data, code, and models, making it challenging to keep track of changes to each component and how they interact with one another.
3. Iterative development process: In Machine Learning, the development process is often iterative, with developers frequently updating models based on new data or improving the accuracy of the model. Managing these changes and versions can be complex and time-consuming.

DVC solves these problems by providing a simple and efficient way to version control both data and models in machine learning projects. DVC enables you to version control not just the code, but also the data and models, and track the relationships between them. With DVC, you can easily reproduce previous experiments, collaborate with team members, and automate workflows to streamline the development process.

Installation and Setup:

To get started with DVC, you need to install and set it up on your local machine. In this section, we'll provide step-by-step instructions on how to do this, including how to configure DVC to work with different cloud storage services and how to create a new DVC project.

1. Install DVC: The first step is to install DVC on your local machine. You can do this by following the installation instructions for your operating system on the DVC website.

2. Create a new DVC project: Once DVC is installed, you can create a new DVC project by running the following command in your terminal:

dvc init

This will create a new DVC project in your current directory.

3. Configure DVC to work with cloud storage: If you want to use DVC with cloud storage services like Amazon S3 or Google Cloud Storage, you need to configure DVC to work with these services. You can do this by adding a new remote using the following command:

dvc remote add -d <remote-name> <storage-url>

For example, if you want to add an Amazon S3 remote named "my-s3-remote", you can run the following command:

dvc remote add -d my-s3-remote s3://my-bucket-name

This will add a new remote to your DVC project that is configured to work with Amazon S3.

4. Add data to your DVC project: Once you have set up your DVC project and configured it to work with cloud storage, you can start adding data to it. You can do this by running the following command:

dvc add <path-to-data-file>

This will add the data file to your DVC project and create a corresponding DVC file that tracks changes to the data.

5. Push changes to remote storage: If you have configured your DVC project to work with remote storage, you can push changes to this storage by running the following command:

dvc push

This will push any changes you have made to your data or models to the remote storage.

DVC Commands:

DVC provides a number of useful commands for managing and versioning machine learning projects. Here is a list of some of the most commonly used DVC commands:

1. dvc init: Initializes a new DVC project in the current directory.
2. dvc add <path-to-file>: Adds a file to DVC and creates a corresponding DVC file to track changes to the file.
3. dvc run: Runs a command or script with DVC tracking enabled, so that any inputs and outputs are tracked by DVC.
4. dvc repro: Reproduces a DVC-tracked command or script, ensuring that all dependencies are up-to-date.
5. dvc push: Pushes all data files and model files to remote storage, such as AWS S3 or Google Cloud Storage.
6. dvc pull: Pulls all data files and model files from remote storage to the local machine.
7. dvc status: Shows the status of tracked files, including whether they have been modified, added, or deleted.
8. dvc log: Shows a list of all versions of a file, along with their corresponding commit messages and other metadata.

Reproducing Experiments with DVC:

One of the most significant benefits of using DVC is its ability to reproduce machine learning experiments. With DVC, you can define and track the dependencies between your code, data, and models, and use the dvc repro command to reproduce previous experiments.

Example Workflow:
Sure, here's an example workflow for a sklearn iris dataset using a .yaml file:

1. First, initialize a new DVC project by running the command dvc init.
2. Create a data directory in your project folder to store the dataset, and download the sklearn iris dataset into this directory.
3. Add the data files to DVC using the dvc add command. For example: dvc add data/iris.csv.
4. Create a .yaml file to define the pipeline. For example, iris.yaml. This file will contain the commands for preprocessing, training, and evaluating the model.
5. Define the steps in the .yaml file using the DVC commands. For example:

stages:
  preprocess:
    cmd: python preprocess.py data/iris.csv data/preprocessed.csv
    deps:
      - data/iris.csv
    outs:
      - data/preprocessed.csv

  train:
    cmd: python train.py data/preprocessed.csv models/model.pkl
    deps:
      - data/preprocessed.csv
    outs:
      - models/model.pkl

  evaluate:
    cmd: python evaluate.py models/model.pkl data/iris.csv
    deps:
      - models/model.pkl
      - data/iris.csv

6. Run the pipeline using the dvc repro command. This command will run the steps defined in the .yaml file in the correct order, ensuring that all dependencies are up to date. For example: dvc repro iris.yaml.

By defining your pipeline in a .yaml file and using the dvc repro command, you can easily reproduce your experiments, track the versions of your data and models, and collaborate with team members on your machine learning project.

Here is an example workflow:

1. Set up the appropriate credentials and endpoint information for the S3 server:

dvc remote add -d s3remote s3://your-s3-bucket-name/path/to/models

2. Pull the necessary model files from the S3 server to the local machine:

dvc pull -r s3remote path/to/models/model.pkl

3. Copy the downloaded model files to the target remote server:

scp path/to/models/model.pkl user@target-remote-server:/path/to/models/

4. Use the copied files for inference on the target remote server:

# Load the model
import pickle
with open('/path/to/models/model.pkl', 'rb') as f:
    model = pickle.load(f)

# Make predictions
X_test = [[5.1, 3.5, 1.4, 0.2], [7.7, 3.0, 6.1, 2.3], [6.0, 3.0, 4.8, 1.8]]
y_pred = model.predict(X_test)
print(y_pred)

This workflow assumes that you have set up the necessary credentials and endpoint information for the S3 server, and that you have access to both the local and target remote servers. You can modify the workflow based on your specific needs and setup.

How TrueFoundry Integrates with DVC:

TrueFoundry integrates seamlessly with DVC Model Registry to allow you to deploy models logged in DVC to your Kubernetes Cluster using TrueFoundry.

Step 1 - Install and setup:

• Setup DVC

# Install DVC and S3 support
pip install dvc dvc-s3

# Initialize Git in the local directory
git init

# Initilize DVC in the local directory
dvc init

# Set DVC remote storage as your bucket
dvc remote add s3://<your_bucket_name>

Note: You will have to configure your s3 cli for this to work

• Import dvc

import dvc

• Install servicefoundry

pip install -U "servicefoundry"

• Login to truefoundry

sfy login

Step 2 - Train and log the model:

We will train our ML model and save it as a joblib file
Then we will add the model and the evaluation metrics using **`dvc add`**
Then we will push our joblib file to dvc via **`dvc push`**

from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LogisticRegression
from sklearn.metrics import classification_report
import joblib
import os

# Load and preprocess the data
X, y = load_iris(as_frame=True, return_X_y=True)
X = X.rename(columns={
        "sepal length (cm)": "sepal_length",
        "sepal width (cm)": "sepal_width",
        "petal length (cm)": "petal_length",
        "petal width (cm)": "petal_width",
})

X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.2, random_state=42, stratify=y
)

# Initialize the model
clf = LogisticRegression(solver="liblinear")

# Fit the model
clf.fit(X_train, y_train)

# Evaluate the model
preds = clf.predict(X_test)

# Save the model using joblib and DVC
joblib.dump(clf, "model.joblib")
os.system("dvc add model.joblib")

# Log the evaluation metrics
report = classification_report(y_test, preds, output_dict=True)
with open("classification_report.txt", "w") as f:
    f.write(str(report))

# Push the model and evaluation metrics to the remote storage
os.system("dvc push")

Step 3 - Create an inference application and dependecy file:

We will have to create two files to deploy on truefoundry, a app.py file that contains our application code, and a requirements.txt file that contains our dependencies.

.
├── app.py
├── deploy.py
└── requirements.txt

• app.py:

import os
import joblib
import pandas as pd
from fastapi import FastAPI

# Retrieve the model from S3 using DVC
os.system("dvc pull model.joblib.dvc")

# Load the model
model = joblib.load("model.joblib")

# Load the model
app = FastAPI()

@app.post("/predict")
def predict(
    sepal_length: float, sepal_width: float, petal_length: float, petal_width: float
):
    data = dict(
        sepal_length=sepal_length,
        sepal_width=sepal_width,
        petal_length=petal_length,
        petal_width=petal_width,
    )
    prediction = int(model.predict(pd.DataFrame([data]))[0])
    return {"prediction": prediction}

• requirements.txt:

fastapi
pandas
joblib
dvc

Step 4 - Use the truefoundry's python sdk and configure the deployment

• deploy.py:

import argparse
import logging
from servicefoundry import Build, PythonBuild, Service, Resources, Port

# Setup the logger
logging.basicConfig(level=logging.INFO)

# Setup the argument parser
parser = argparse.ArgumentParser()
parser.add_argument("--workspace_fqn", required=True, type=str)
args = parser.parse_args()

service = Service(
    name="fastapi",
    image=Build(
        build_spec=PythonBuild(
            command="uvicorn app:app --port 8000 --host 0.0.0.0",
            requirements_path="requirements.txt",
        )
    ),
    ports=[
        Port(
            port=8000,
            host="ml-deploy-aditya-ws-8000.demo.truefoundry.com",
        )
    ],
    resources=Resources(
        cpu_request=0.25,
        cpu_limit=0.5,
        memory_request=200,
        memory_limit=400,
        ephemeral_storage_request=200,
        ephemeral_storage_limit=400,
    ),
)
service.deploy(workspace_fqn=args.workspace_fqn)

Step 5 - Deploy your Service via Truefoundry

Run the following command and pass in your

• Workspace FQN: that you can find in the dashboard

python deploy.py --workspace_fqn your_workspace_fqn

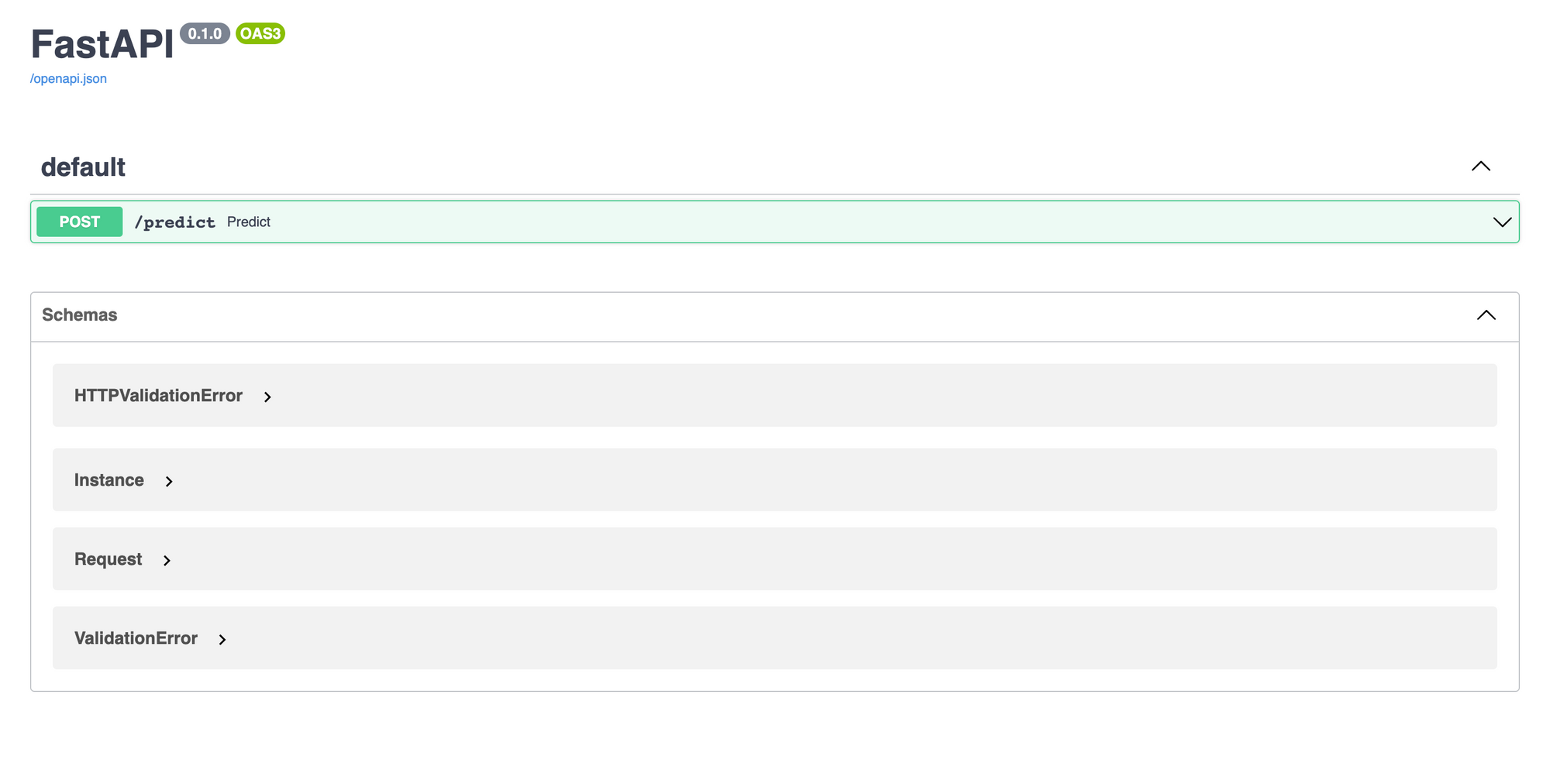

And voila!!! In the logs you can find your deployed service's dashboard. And then on top right corner you will find your deployed applications endpoint.

TrueFoundry is a ML Deployment PaaS over Kubernetes to speed up developer workflows while allowing them full flexibility in testing and deploying models while ensuring full security and control for the Infra team. Through our platform, we enable Machine learning Teams to deploy and monitor models in 15 minutes with 100% reliability, scalability, and the ability to roll back in seconds - allowing them to save cost and release Models to production faster, enabling real business value realisation.
